This UV Bulb kit is suitable for SwissQprint Impala and Dyss Apollo printers. This is the original UV lamp.
The SubZero 170 deliver a 16% increase in UV output. With a 170mm cure length the new lamp units deliver 230% more UV energy than the existing SubZero 085 while maintaining the small footprint required for easy integration. The 170 can also be supplied complete with the proven SubZero integral high-speed electronic shutter. This system features a programmed electronic actuation ensuring a fast cycle time (80ms) with inertia-less braking, enabling the shutter to be closed or opened during the print cycle without transmitting vibration to the print engine. Detailed research and lengthy cycle testing has enabled a design that offers exceptional service life eliminating unnecessary downtime and maintenance.
Some version of SwissQPrint Impala uses Subzero 220 H UV bulb (ULASW19085). Please check the UV bulb arc length before ordering.

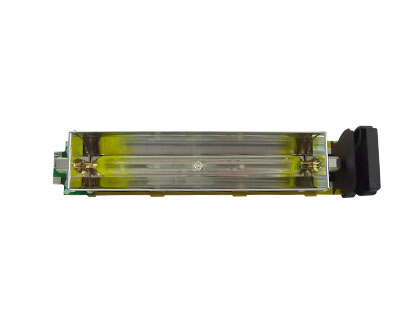

Subzero 170
- Power: 100 W/cm variable
- Arc length: 16.7cm
- Total length: 23.8cm
- 500 hours coverage under normal conditions
- 6 months shelf life
SubZero Standard Features:
- Ultra light weight with compact ‘footprint’
- High intensity reflector system
- Replaceable quartz front plate
- Quick change lamp cassette
- Advanced halide bulb technology
- Integrated air-cooling
- Switch-mode electronic power supply
- Hi-flex plug and socket cabling connections
Additional SubZero Options
- High Speed Electronic Shutter
- Alternative bulb spectra ‘H’,’D’,’V’ or ‘A’
- Enhanced optics
SubZero Compliances (Pending)
- ISO CE 60950-1
- (UL CUL CB 60950-1)
- CE EN 60204
- EMC EN 55015
- EMC EN 61000
Power Supply
- Switch-mode Electronic
- 200 – 250V 50 – 60Hz
Compatibilidad de impresora:
DYSS Apollo GF2616-08F, DYSS Apollo GF2616-10FFW, DYSS Apollo GF2616-10FRW, DYSS Apollo GF2616-12F, DYSS Apollo GF2616-12S, DYSS Apollo GF2616-14SFW, DYSS Apollo GF2616-14SRW, DYSS Apollo GF2616-16F, DYSS Apollo GF2616-16SFWFV, DYSS Apollo GF2616-16SRWRV, DYSS Apollo GF2630-16SFWW, DYSS Apollo GF2630-20FMW, DYSS Apollo GH1600-08F, DYSS Apollo GH1600-08SF, DYSS Apollo GH1600-08SR, DYSS Apollo GH1600-10FM, DYSS Apollo GH1600-12S, DYSS Apollo GH1600-12SFWFV, DYSS Apollo GH2200-08F, DYSS Apollo GH2200-08SF, DYSS Apollo GH2200-08SR, DYSS Apollo GH2200-10FM, DYSS Apollo GH2200-12S, DYSS Apollo GH2200-16SFWFV, DYSS Apollo GH2600-08F, DYSS Apollo GH2600-08SF, DYSS Apollo GH2600-08SR, DYSS Apollo GH2600-10FM, DYSS Apollo GH2600-12S, DYSS Apollo GH2600-12SFWFV, DYSS Apollo PTP18/3202-KC, DYSS Apollo PTP18/3204-KC, DYSS Apollo PTP18/3206-KC, DYSS Apollo PTP1804-KL, DYSS Apollo PTP1806-KL, DYSS Apollo PTP1808-KL, DYSS Apollo PTP3204-KL, DYSS Apollo PTP3204-KM, DYSS Apollo PTP3206-KL, DYSS Apollo PTP3208-KL, DYSS Apollo PZ 3208-KX, DYSS Apollo PZ3204-KX, DYSS Apollo PZ3206-KX, DYSS Apollo R160, DYSS Apollo R220, DYSS Apollo R260, DYSS Apollo UV-RF2200, SwissQprint Impala
