Description

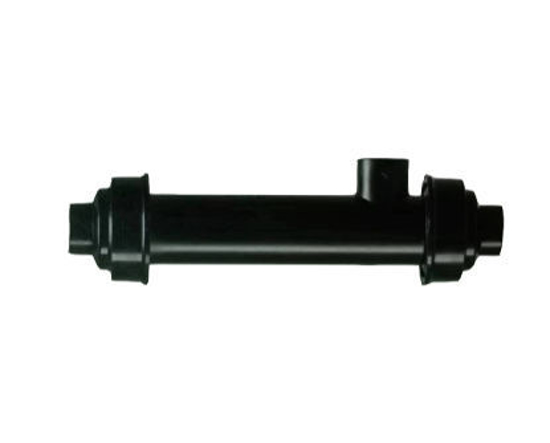

This degassing module is a hollow fiber membrane contactor designed for efficient removal of dissolved gases from ink jet inks on-board ink jet printing systems.
Specifications:
- Size : 115 mm x Ø 30 mm (4.53 in x Ø 1.18 in)
- Weight : approximately 27g (0.06 lb)
- Materials:
- Hollow fiber : Poly (4-Methylpenten-1)
- Housing : Polypropylene
- End cap : Polypropylene
- Sealing resin : Epoxy resin
- O-ring : EPDM
- Surface area of membrane: Approximately 0.06 m2 (0.65 ft2)
- Performance of module (with water):
- Treated water DO: Less than 0.2 kPa (0.002 bar, 0.029 psi) (Under test conditions)
- Pressure drop: Less than 0.2 kPa (0.002 bar, 0.029 psi) (Under test conditions)
- Flow rate : 0.5 - 180 ml/min
- Use conditions:
- Liquid temperature: 5-45°C (41-113 °F)
- Maximum liquid pressure (Gauge) : 200kPA (2bar, 29psi)
- Vacuum pressure (absolute):
- Aqueous liquid: Saturation vapor pressure ~100kPa (1 bar, 14.5 psi)
- Non-aqueous liquid: 1 kPa~100kPa (1bar, 14.5 psi)
- Operating temperature: 5~45 °C (41~113 °F)
- Use/Storage conditions: Keep dry in door with temperature under 45 °C (113 °F). Handle with care. Do not expose to sunlight. Do not freeze remaining water in a module after used for any purpose.
- Connecting joint:
- Water inlet/outlet : Rc 1/8
- Vacuum port: Rc 1/8
Printer compatibility:
Durst Rho 600 Basic, Durst Rho 600 Pictor, Durst Rho 600 Rapid, Durst Rho 800 HS, Durst Rho 800 Presto, EFI Vutek GS2000, EFI Vutek GS2000LX, EFI Vutek GS3200, EFI Vutek GS3250, EFI Vutek GS3250r, EFI Vutek GS5000r, EFI Vutek QS2000, EFI Vutek QS3200, EFI Vutek QS3200r, EFI Vutek QS3220, EFI Vutek QS3250r, Fujifilm Acuity LED 1600
